Common Flammability Test Equipment 20 Degree Combustion Nozzle 305x355x610 mm

product manual

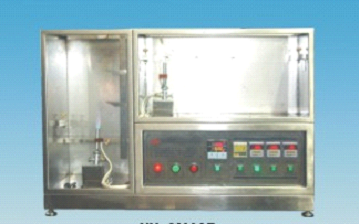

WH-8820AP vertical and horizontal burning test machine (common type) Test Standard:

According to UL62-3839, UL1581-1060-1080,1100,1140 standard production, testing the flame

retardant wire. Instrument consists of: control box, vertical combustion box, horizontal combustion

chamber, combustion lamp, solenoid valve, high pressure igniter, gas pipe, pressure regulating

valve, and signal control line. Control box with: fire timer, stop spray timer, combustion counter,

manual / automatic operation selector switch, vertical / horizontal selection switch and power

switch and other components.

The main parameters:

1, the vertical combustion chamber and the horizontal combustion chamber: box size

305x355x610mm

2, vertical combustion nozzle and horizontal combustion nozzle: the nozzle angle is 20 degrees,

with gas control valve.

3, stop mode: the preset data, the machine will automatically stop the test.

4, an increase of high-precision flame retardant control system and temperature measurement

system

5, the time relay control

6, the combustion angle can be adjusted freely (manually set)
