Gaseous Pollutant Generator Air Flow Test Equipment Air Purifier Product Performance Testing

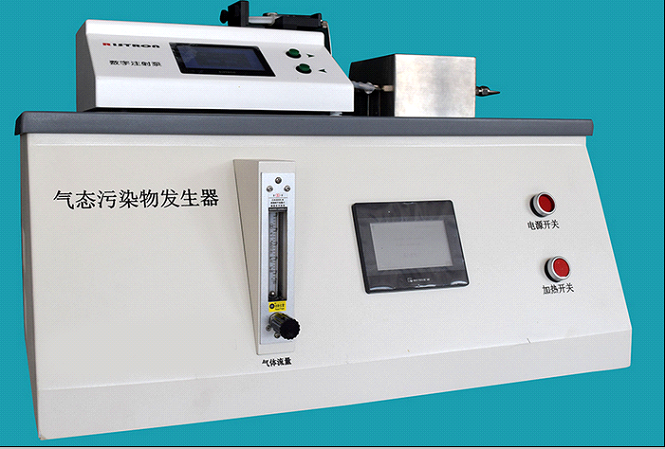

Model: FSQ-3 Gaseous pollutant generator

Overview: According to relevant requirements of GB/T 18801-2015 Air Cleaner, this generator is

used to provide formaldehyde pollutant for performance testing equipment of air cleaner. This

generator shall be used together with performance testing device of air cleaner. By adopting

precise injection system, catalytic reaction or heating evaporation method to acquire gaseous

pollutant, and the generation speed is accurate and adjustable.

Technical parameters:

1. Type of pollutants: Formaldehyde, Benzene-toluene, VOCs.

2. Generation mode: Current flow and continuous generation

3. Generation speed: 0.1-1000mg/h (Different injectors can be selected for range adjustment)

4. Carrier gas: Air

5. Carrier gas flow: 1-10 (3 is commonly used)L/min

6. Methanol/formaldehyde converter: Equipped

7. Working temperature for conversion: 110-300℃

8. Generation accuracy of formaldehyde: ≥99%
