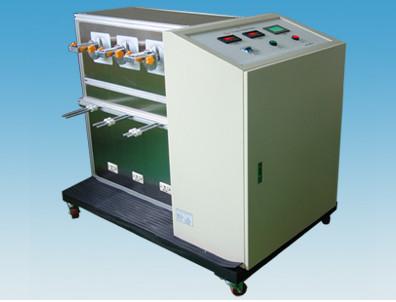

Wh-8801h Bend Test Equipment Swing Tester 45-7200 Degree Rotation Angle​

Applicable scope: This testing machine complies with the general safety requirements of "cord

element and power cord" of IEC-60884, UL859Cluase42 & 44, IEC60335-2-23Cluase25,

UL817, VDE, CCC, IEC and other relevant standards. Applicable to the manufacturer and the

goods seized the electrical products on the power cord, DC line bending test.

The main parameters:

1, the rotation angle adjustable ± 45-7200 degrees

2, powertrain: Taiwan CEMA, DELTA

3, the system: man-machine interface, touch screen

4, adjustable speed: 6-60RPM

5, while testing six samples

6, automatic detection of disconnected or poor contact and automatically shut down, and display

the corresponding channel failure test, the issue of sound and light alarm

7, 6-bit preset count and power outage memory function, and display large / small test cycle times

8, 6 250V / 20A load socket (Taiwan WONPRO), a 110V-240AC / 18A load box

9, 250 V / 5KVA of the regulator (CHNT) one

10, weight: 113g, 200g, 284g, 500g, 2000g each 6
