Real Time Capacitive Load Bank LCD Touch Screen 500V Voltmeter 15Ms Surge Time​

● Overview:

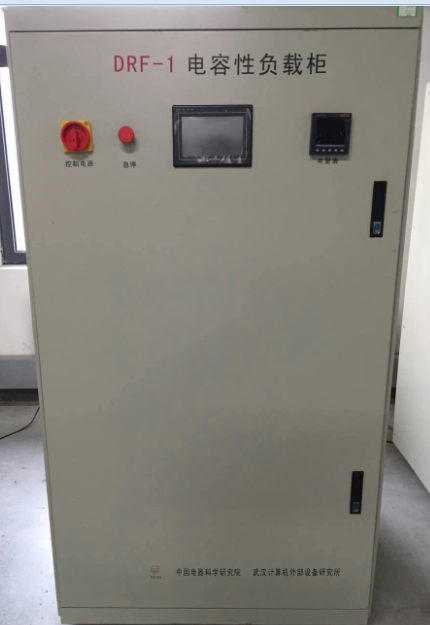

DRF-1 capacitive load cabinet is the auxiliary equipment designed according to requirements on

capacitive load of electrical accessories, as stipulated in GB 15092.1.

Control part of DRF-1 capacitive load testing device mainly includes PLC and LCD touch screen,

on which surge time, testing times, and continuous power-on alarm time can be set. It can select

different steady-state current, peak current and others according to different testing requirements,

and display testing times in real time so as to achieve testing of performance of tested samples.

● Technical features:

1. Voltmeter: AC 0-500V (digital display); (display accuracy: Grade 0.5);

2. Ammeter meter: AC 0-300A (digital display); (display accuracy: Grade 0.5);

3. Surge time: 0-15ms;

4. Power-on time: <2s; off time: <15s;

5. Testing times: 1-999999, this value can be preset;

Notes: Load cabinet doesn’t include load power supply for test.
