Computer Controlled Automated Socket Plug Tester 200 mm / Min Servo
Motor Drive

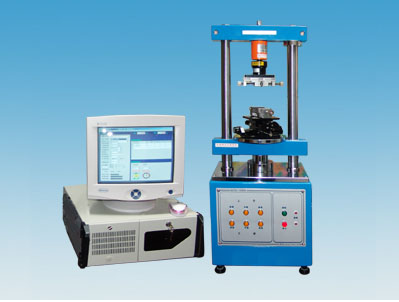

WH-8818CD computer automatic insertion force testing machine This
machine is suitable for a
variety of connector insertion force and pull-out test, with the
patented design of the automatic
seeking heart device, will be fully accurate plug power test, the
use of WINDOWS, (Test
conditions, displacement curve, life curve, inspection reports,
etc.)
1, the determination of the maximum load: 50,20,5,2 kg
2, the minimum decomposition of the minimum Chinese characters, 0,
200mm / min
3, X, Y axis moving range: 0 ~ 75mm
4, the transmission: the ball: the ball bearing the ball, Screw
5, the drive motor: servo motor
6, the appearance of size: 360 × 260 × 940mm
7, Weight: 67kg (machine)
8, power supply: AC 220V Features: to solve a variety of connector
testing fixture problems, The
connectors are self-aligning and do not have unilateral problems.
Test items:
★ single-hole connector plug connector test
★ plug the whole row plug-in test
★ connector connector pin single-pin and plastic retention test
★ connector NORMAL FORCE test
★ general compression, tensile failure test
* Can be connected with the contact impedance machine at the same
time (optional) Features:
* Printable graphics (plug displacement curve, life curve,
inspection report)
* Test data stored on the hard disk (each data can be stored ,
Unlimited number of times)
※ test conditions are set by the computer screen, convenient and
fast (including plug travel,
speed, pause time, etc.)
※ test report can be transferred to EXCEL editing standard
equipment:
1) 8818C test machine Ontology.
2) control system (industrial computer and control interface,
computer screen, printer) Window
system plug control operation software
3) load cell
4) X-Y mobile station
5) the whole row of connectors with automatic correction device.
6) single-roller device with automatic correction device position.
7) The whole row of connectors with clamps
8) single connector with the fixture
9) clip a set of accessories to choose purchase:
10) micro-ohm testing machine and the use of software, connection
GPTB interface card.
11) groove milling machine and its special folder (variable type
plastic connector for folder gnaw
and long jaws)
12) a single pin and the plastic holding force special fixture
