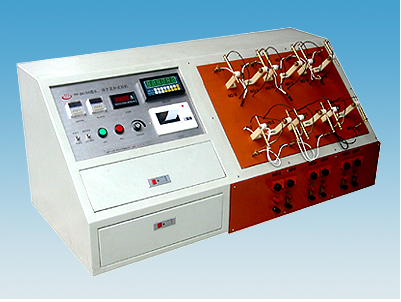

1200VA Socket Plug Tester 20 Channel For Plug Terminal Temperature Rise Test​

1, This instrument is suitable for terminal temperature rise test and plug temperature rise test.

And divided into two areas were tested.

2) The main parameters:

1) Power: 1200VA

2) current 0 ~ 50A adjustable; load voltage: less than 12V

3) test temperature: 0 ~ 150 ℃;

4) 20-channel microcomputer intelligent tour scan; automatic printing record test temperature.

Plus current time and stop time (0 ~ 99.99S / M / H digital button) setting; can be set through the

current load time and load time, but the cyclical work cycle.

5) preparation: twelve K-type alloy temperature thermocouple.

6) The test mode two:

Mode 1: A, through the rated current; B, record the temperature every 5 minutes; C, when the

three consecutive temperature data show stability down, record the temperature difference

between room temperature and terminal temperature rise.

Mode II: A, through the rated current; B, to 45 minutes and 15 minutes load without load for a

cycle, after 45 minutes of load record temperature, and load also need.
