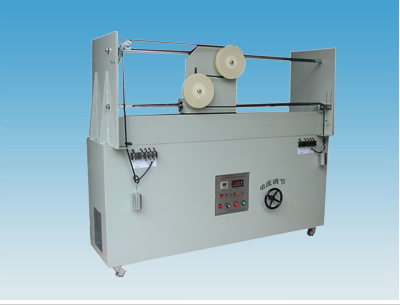

1M Deflection Testing Machine For Rubber Insulated / Sheathed Flexible Cable ​

Meet the standards:

in line with IEC227-2, IEC245-2, VDE0472, GB5023.2, IEC60245-2 (ed2) 1994 + A1: 1997,

GB5023.2 and GB5013.2, UL1581 standard design and manufacturing

Scope: used to detect the rubber insulated and sheathed flexible cable in the dynamic load, after

a certain number of bending degree of damage after bending.

The main function:

1, the test sample type: two-core single-phase, three-core three-phase,

2, the test method: no-load, single-phase (two-core), three-phase (three-phase three) can choose

3, stop mode: A, can indicate: O, R, S phase line

B, can indicate: R / S, R / T, S / T short circuit

The main parameters:

1, bending speed: 0.33m / s

2, Torsion stroke: ≥ 1M

3, the test current: 0 ~ 35A

4, test voltage: two-phase single-phase AC: 220 V / three-phase AC: 380V, 50 / 60HZ

5, heavy hammer: 0.5,1.0,2.0,3.0,7.0 kg

6, pulley structure: car for the two pulley structure

7, pulley diameter: φ60 φ80 φ120 φ160 φ200 mm (plastic material)

The main structure: the use of guided-type structure
