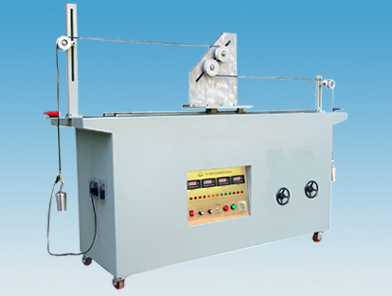

0.33M / S Flexing Speed Electrical Wire Tester Four Core Three Phase Deflection Test ​

Meet the standards:

in line with IEC227-2, IEC245-2, VDE0472, GB5023.2, IEC60227-2 (ed2) 1997, IEC60245-2

(ed2) 1994 + A1: 1997, HD22.1 standards 5.6.3.1,5.6.3.2 , GB5023.2 and GB5013.2, UL1581

standard design and manufacturing

Scope: used to detect the rubber insulated and sheathed flexible cable in the dynamic load, after

a certain number of bending degree of damage after bending.

The main function:

1, test sample type: two-core single-phase, three-core three-phase, four-core three-phase

2, the test method: no-load, single-phase (two-core), three-phase (three-phase three-wire / three-

phase four)

3, stop mode: A, can indicate: O, R, S, T phase line

B, can indicate: R / S, R / T, S / T, R / O, S / O, T / O short circuit

C, can indicate: O, R, S, T and pulley short circuit

The main parameters:

1, flexing speed: 0.33m / s

2, Torsion stroke: ≥ 1M

3, the test current: 0 ~ 35A

4, test voltage: two single-phase AC: 0 ~ 250V / three-phase AC: 0 ~ 450V (adjustable), 50 /

60HZ

5, heavy hammer: 0.5,1.0,2.0,3.0,7.0 kg

6, pulley structure: car for the two pulley structure

7, pulley diameter: φ60 φ80 φ120 φ160 φ200 mm (aluminum)

The main structure: the use of Japanese NHK linear bearings and linear slide
